10S 15A BMS Lithium 18650 Battery Charge Board With Same Port
Original price was: ₹3,600.00.₹1,950.00Current price is: ₹1,950.00. (includes 18% GST)
Availability:
In Stock

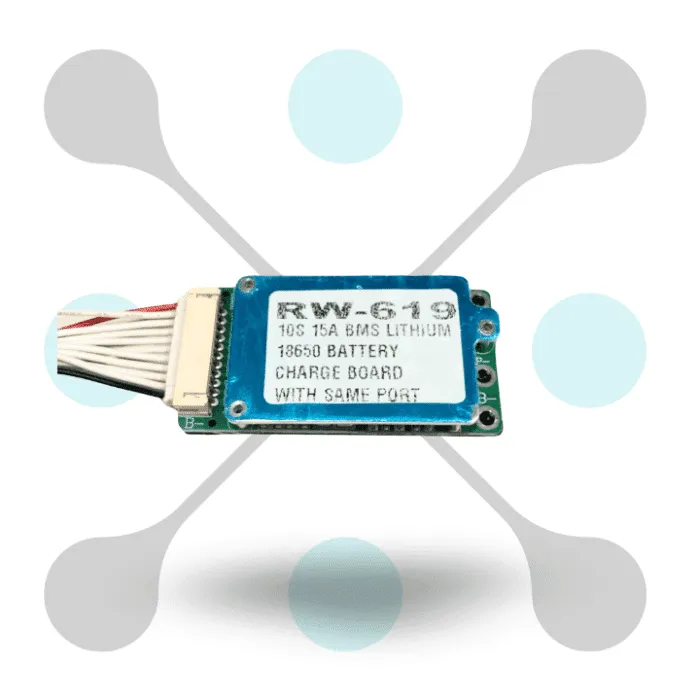

Overview Of This 10S 15A BMS Battery Charge Board With Same Port
Introducing Roboway 10S 15A BMS Battery Charge Board with Same Port to manage 18650 lithium battery at best price in India. This 10S 15A BMS module ensure efficient charging and discharging with comprehensive protection features. It provides overcharge, over-discharge, and short-circuit protection to enhance battery safety and reliability. Ideal for electric bikes, scooters, and other high-power applications, this 10S BMS board with the same port is a reliable solution for battery management.
With a 15A current rating, the Roboway 10S 15A 18650 lithium battery BMS board supports high-performance energy systems. The same port design simplifies wiring and reduces space requirements in your project. Its robust construction and high-quality components guarantee long-lasting and stable performance. Upgrade your battery management system with this efficient 10S 15A BMS Battery Charge Board for enhanced safety and efficiency.
Get the Adopter of Alexa which I was searching from last 6 months..
Amazon it-self not have the same..
Amazon it-self not have the same..
I purchase Lenovo laptop charger and I am very happy and more than peoples buying laptop adaptor wholesaler retail shop recommended all shops seller. NCC brand good quality product
I purchased by racing bike purchase power adaptor good quality product I am happy 9V .... 06.06.2024
Good service prolite owner 👍
Good
All asus and laptop chargers
Asus 150 watt 31/05/2024
Good
All asus and laptop chargers
Asus 150 watt 31/05/2024
I purchase for hp 150W power adaptor good quality product. Price good.I'm happy.. 30.5.2024. Pri
I purchased by Asus laptop Gaming Adaptor for 180W.. Good quality product I'm happy. Good service shope.
I'm Doctor for AMS
I'm Doctor for AMS
| SPECIFICATION | DETAILS |
|---|---|
| Type | 10S 15A BMS Lithium 18650 Battery Charge Board |
| Supported Battery Type | 18650 Lithium-Ion |
| Number of Cells | 10 cells in series (10S configuration) |
| Nominal Voltage | 36V |
| Max Charging Voltage | 42V (4.2V per cell) |
| Overcharge Protection Voltage | 4.25V ± 0.05V per cell |
| Over-discharge Protection Voltage | 2.8V ± 0.05V per cell |
| Max Continuous Discharge Current | 15A |
| Charging Current | Up to 15A |
| Short Circuit Protection | Yes, automatic recovery |
| Balance Current | 60mA – 80mA |
| Balance Function | Yes, active balancing |
| Internal Resistance | ≤ 20mΩ |
| Operating Temperature Range | -20°C to 60°C |
| Dimensions | Approx. 100mm x 60mm x 10mm |
| Weight | Approx. 45 grams |
| Port Type | Same port for charging and discharging |
| Protection Features | Overcharge, over-discharge, short circuit, and overcurrent protection |
| SKU | RW-619 |
